Ceramic tile terraces are an essential part of modern buildings, providing functional outdoor spaces for residential, commercial, and public use. While tiled terraces provide an attractive and durable surface finish, waterproofing beneath the tiles is one of the most critical factors affecting the long-term performance of the entire terrace system.
Without a properly designed waterproofing system, tiled terraces may experience water leakage, tile debonding, grout cracking, insulation deterioration, and structural damage caused by long-term moisture infiltration.
This article introduces a complete polyurethane waterproofing system for ceramic tile terraces, explaining how each layer works together to provide durable and long-lasting waterproof protection.
Why Waterproofing Under Tiled Terraces Is Challenging
Unlike exposed waterproofing systems, the waterproofing layer beneath ceramic tiles becomes concealed after installation. Once leakage occurs, repairs are often difficult, costly, and disruptive.
Several factors make terrace waterproofing particularly demanding:
• Constant exposure to rainwater and standing water
• Thermal expansion and contraction caused by temperature changes
• Structural movement and substrate cracking
• Water penetration through grout joints
• Foot traffic and maintenance activities
• Risk of trapped moisture inside the terrace assembly
Because of these conditions, tiled terrace waterproofing systems are required to withstand long-term environmental exposure and structural movement while maintaining reliable waterproof performance
Performance Requirements for Tiled Terrace Waterproofing
To ensure long-term durability, the waterproofing system must remain stable and flexible under changing environmental and service conditions.
A reliable system should provide:
• Excellent crack-bridging ability
• Long-term elasticity
• Strong adhesion to concrete substrates
• Reliable vapor control
• Compatibility with insulation and tile systems
• Resistance to ponding water and weather aging
Among different waterproofing technologies, polyurethane liquid-applied systems are widely used for tiled terraces due to their seamless application, flexibility, and durable waterproof performance.
Polyurethane Waterproofing System for Ceramic Tile Terraces
OYH provides a complete terrace waterproofing solution to address the challenges described above.
The tiled terrace waterproofing system includes:
• Primer
• Single-component Polyurethane Waterproofing Coating
• Vapor Barrier
• Thermal Insulation Board
• Tile Installation Materials
• Sealants and Accessories
Our systems are designed to help contractors and developers achieve durable waterproof performance while simplifying installation and long-term maintenance.

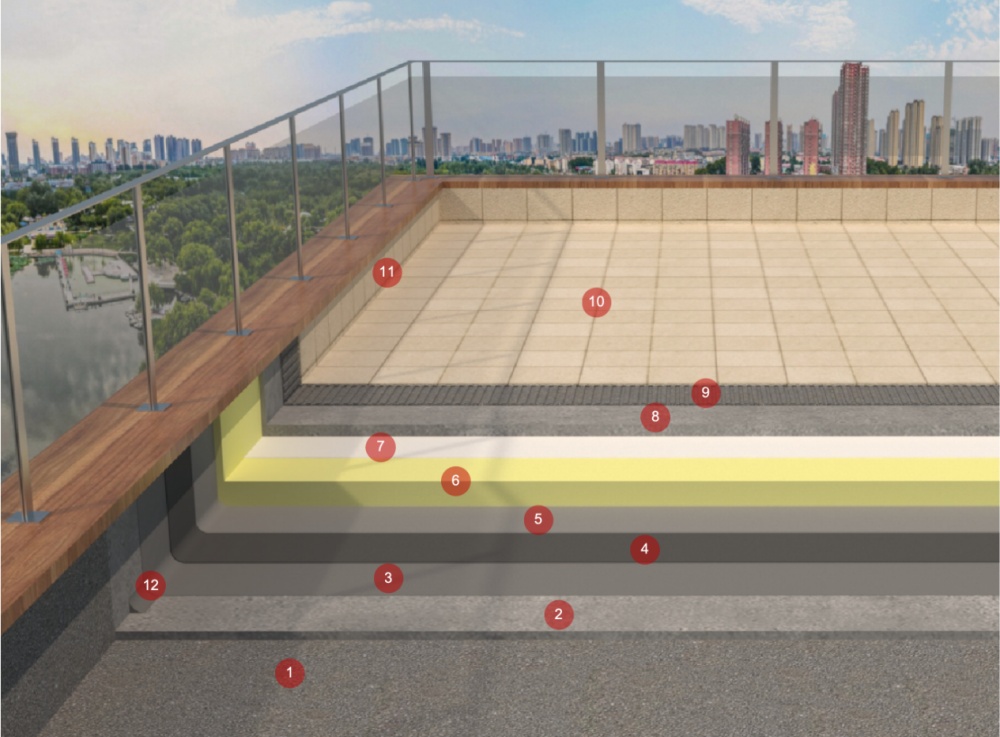

System Buildup
1. Roof Deck
The structural concrete deck serves as the foundation of the entire terrace system. Proper surface preparation is essential before waterproofing application.
2. Screed to Fall
A screed layer is installed to create the required slope for efficient drainage and to minimize ponding water risks.
3. Epoxy Primer
The primer enhances adhesion between the concrete substrate and the polyurethane waterproofing coating.
Recommended Products:

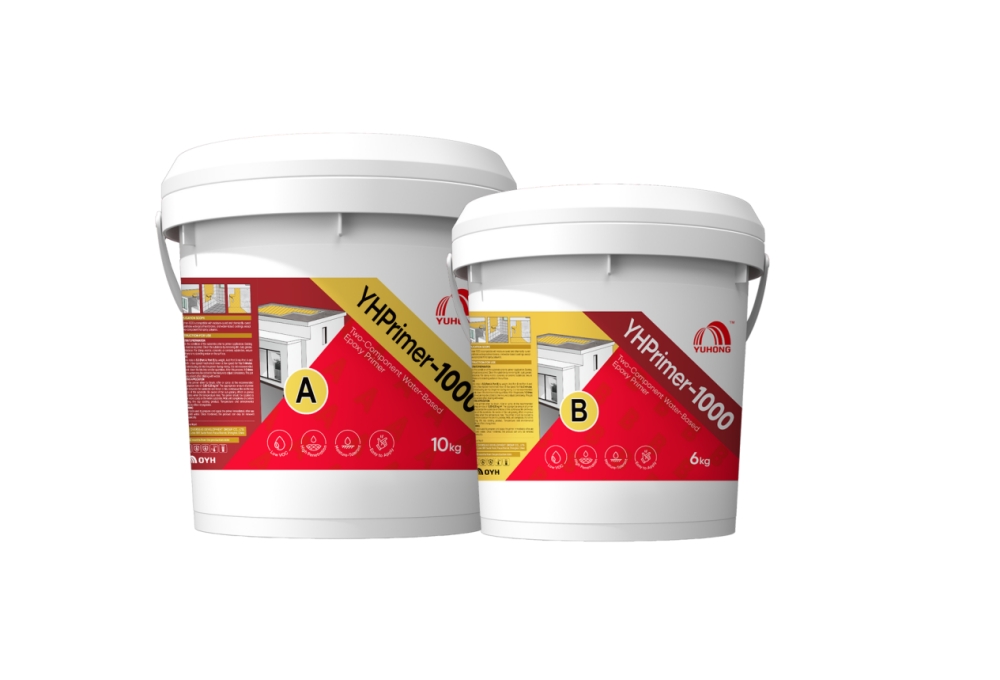

• YHPrimer-1000 Two-component Moisture-Tolerant Epoxy Water-based Primer
4. Polyurethane Waterproofing Coating
This is the core waterproofing layer of the system. Liquid-applied polyurethane membranes form a seamless and fully bonded waterproof barrier capable of accommodating substrate movement and preventing water ingress.
Recommended Products:

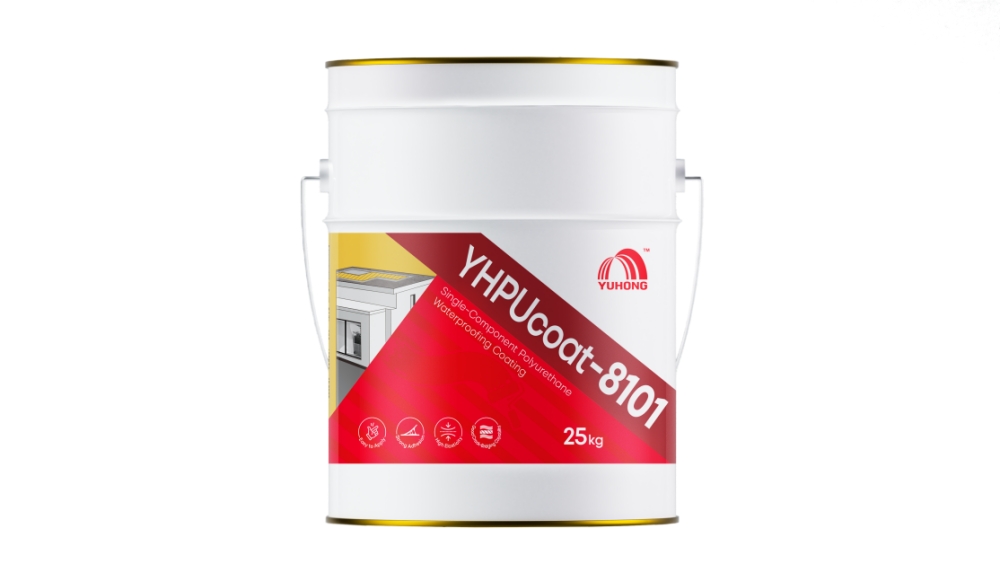

• YHPUcoat-8101 Single-Component Polyurethane Waterproofing Coating

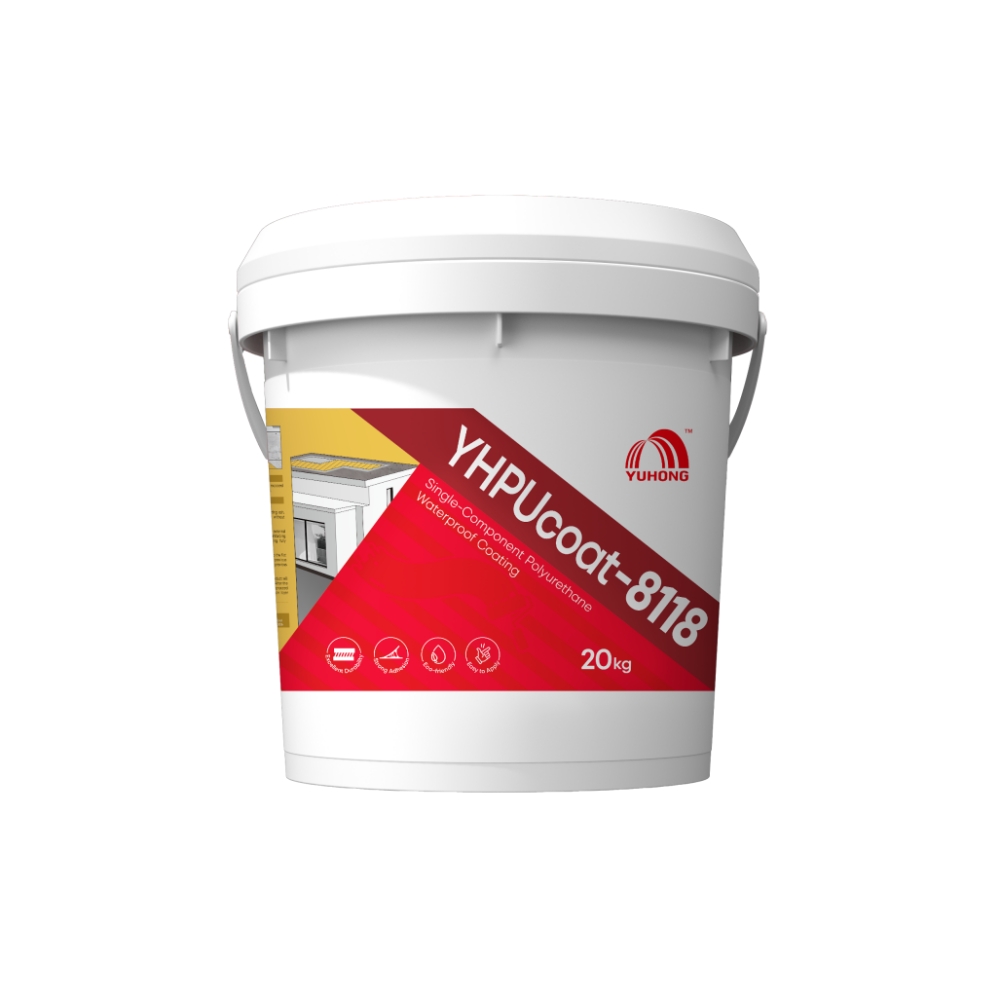

• YHPUcoat-8118 Single-Component Water-based Polyurethane Waterproofing Coating
• YHPUcoat-8130 Single-Component Low-VOC Polyurethane Waterproofing Coating
5. Separation Layer(if needed)
The separation layer helps isolate different materials within the system and improves overall system stability.
Recommended Products:
• YHPEfilm-0600 Vapor Impermeable Film
6. Insulation Layer
Thermal insulation improves building energy efficiency and contributes to stable indoor comfort.
Recommended Product:
• OYH XPS Board

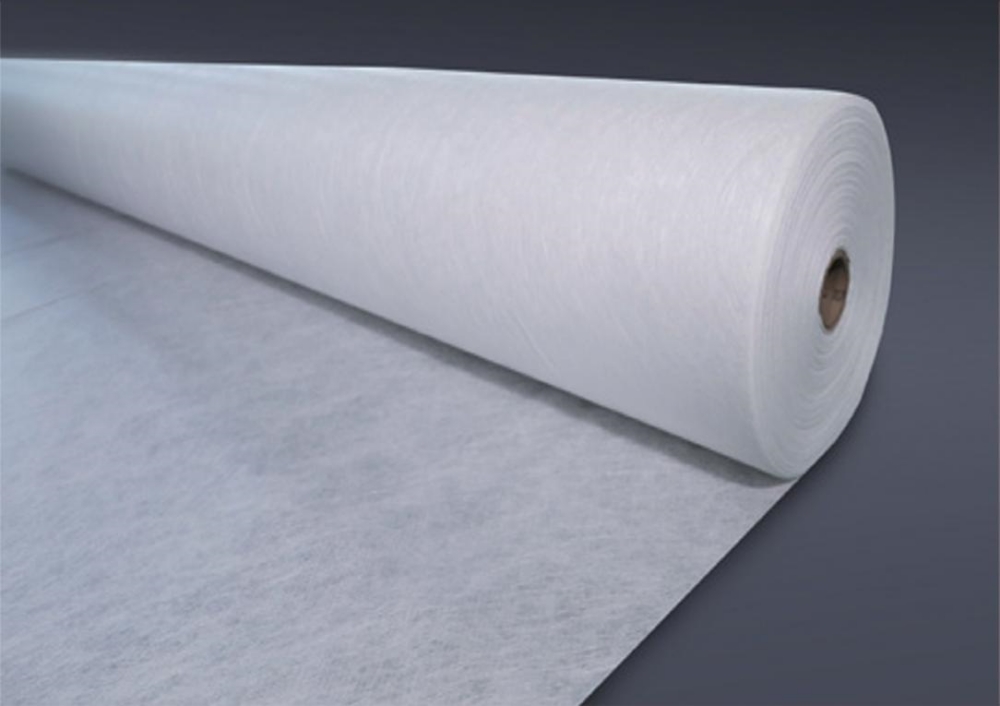

7. Separation Layer
The separation layer helps isolate different materials within the system and improves overall system stability.
Recommended Product:
8. Protective Screed
A protective screed distributes loads evenly and provides a stable substrate for tile installation.
9. Tile Adhesive
A high-performance tile adhesive ensures reliable bonding between the protective screed and ceramic tiles, even under exterior exposure conditions.
Recommended Product:

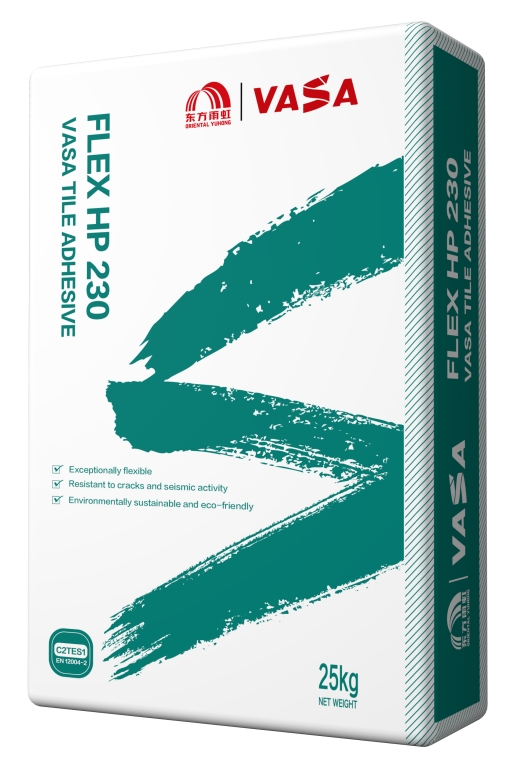

• VASA Tile Adhesive Flex HP 230
10. Tile Grout
Tile grout protects tile joints while contributing to the overall appearance and durability of the tiled surface.
Recommended Product:
• VASA Tile Grout Colorful 200
11. Sealant
Sealant is applied at internal corners and critical detail areas to improve watertightness and accommodate localized movement and stress concentration.
Recommended Product:

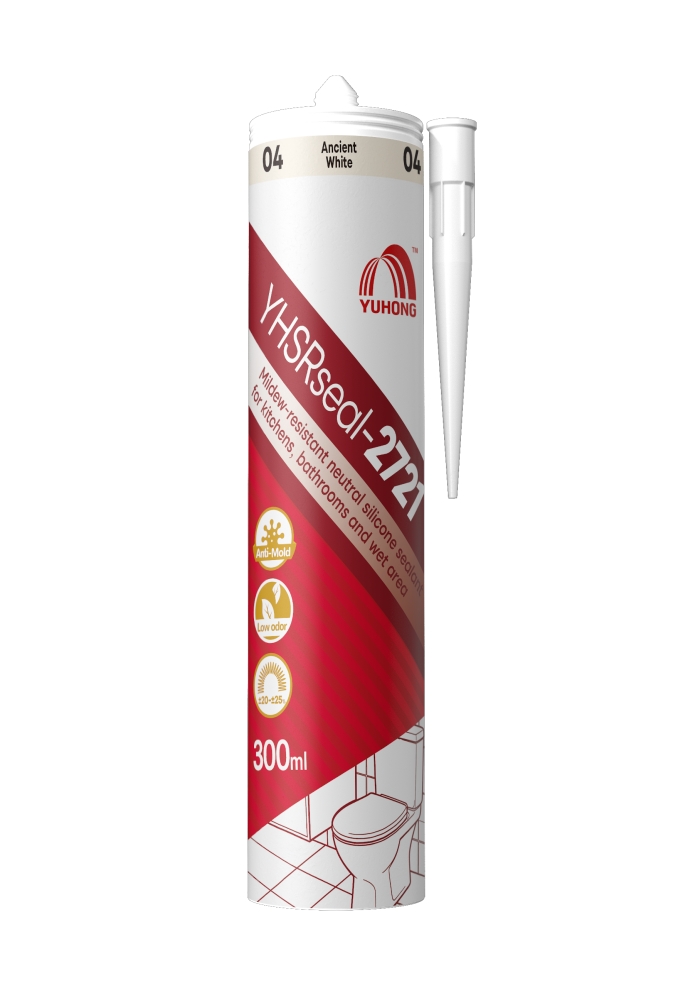

• YHSRseal-2721 Mildew-resistant Neutral Silicone Sealant
12. Chamfer
Chamfers at corners and transitions help reduce stress concentration and improve waterproofing continuity at detail areas.
Advantages of the Complete System
• Fully compatible system components
• Reduced risk of interface failure
• Simplified project coordination
• Reliable long-term waterproofing performance
• Complete solution from a single supplier
Conclusion
Tiled terraces present a challenging waterproofing environment due to continuous exposure to weather conditions, structural movement, and the concealed nature of the waterproofing layer. Any failure in the system can lead to difficult and costly repairs.
To address these challenges, a well-designed system must work as an integrated whole, combining reliable waterproofing performance with compatible supporting layers such as primers, insulation, and tile finishes.
Polyurethane liquid-applied waterproofing systems are widely used in tiled terrace applications due to their flexibility, durability, and seamless performance under complex service conditions.
With a complete system approach, OYH provides not only individual waterproofing materials but also fully compatible terrace solutions designed to enhance long-term performance, reduce system risks, and improve overall durability.
